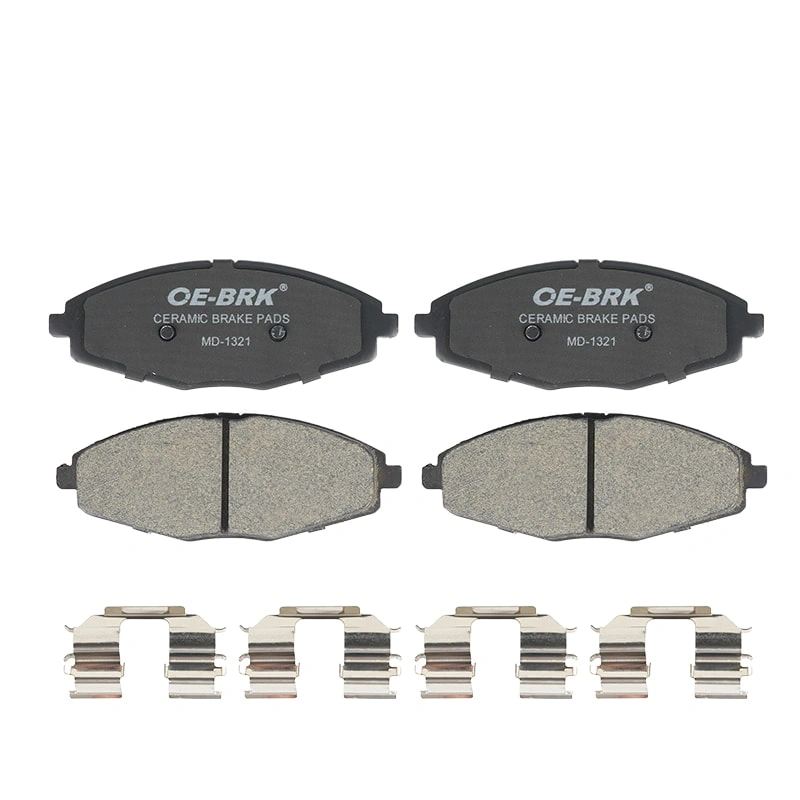

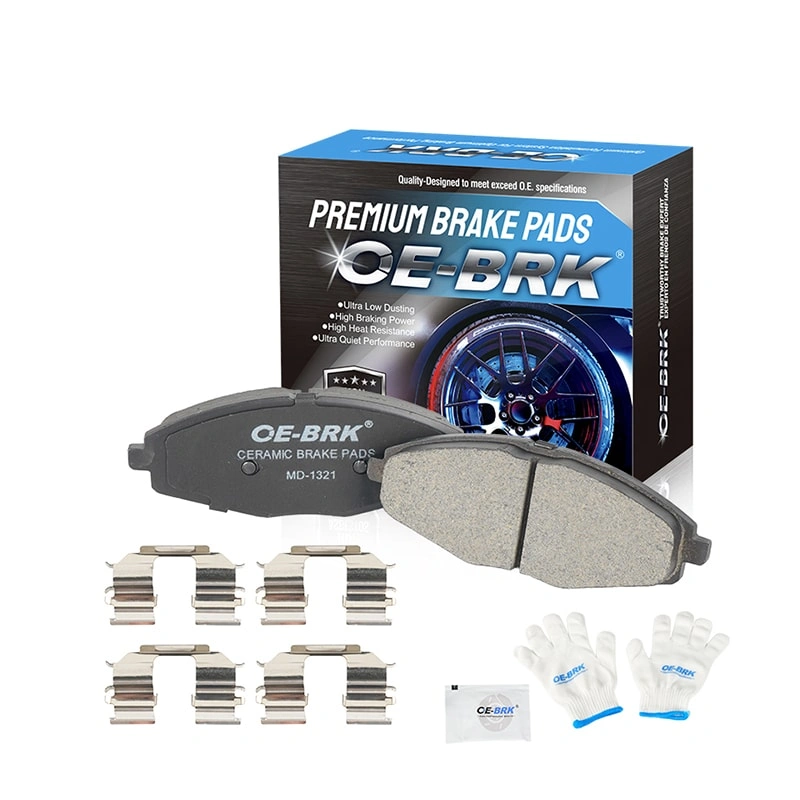

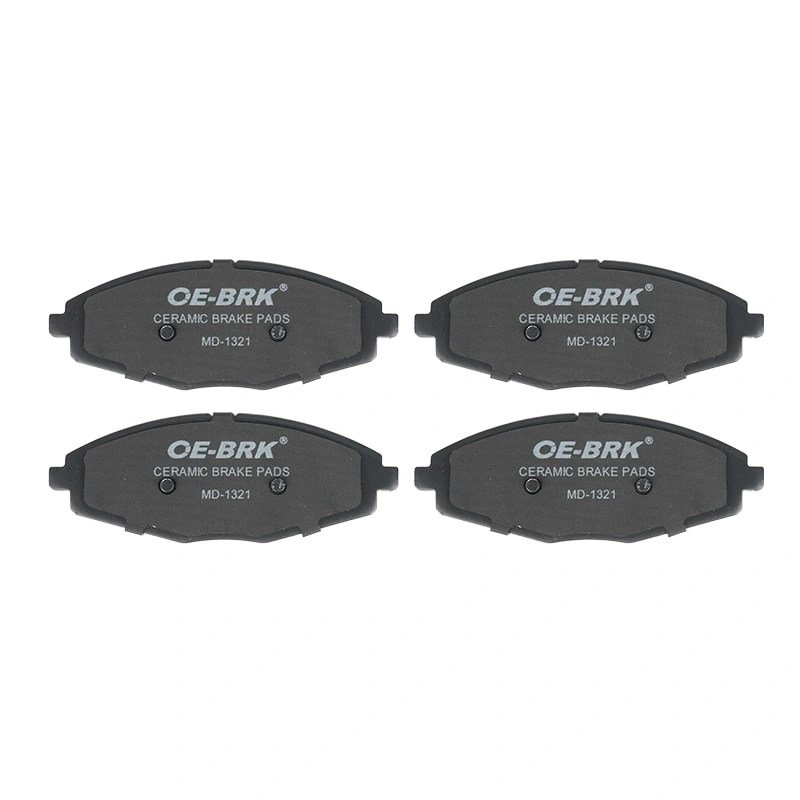

Front Brake
SPECIFICATIONLocation
Front Brake
Width
127 mm
Height
48.3 mm
Thickness
16 mm
CROSS REFERENCEBENDIX AUS
DB1368
CHANGAN
CV60601502
Chery
S113501080
DAEWOO
96273708
DAEWOO
96281945
DAEWOO
96316582
DAEWOO
9644 6176
DAEWOO
96446175
DAEWOO
S4510004
FMSI
D1321-8433
GM
93747541
GM
96273708
GM
96288629
GM
96316582
GM
96446176
GM
96596770
HI-Q
SP1086
KASHIYAMA
D-11144-01
KASHIYAMA
D11144
NIBK
PN0390
WVA
23241
| YEARS | BODY | FRONT ROTOR | FRONT BRAKE | REAR ROTOR | REAR BRAKE | PARKING SHOE |
| 03.02~ | DB22 | MD1321 | S11-3502031ABS113502030 | |||
| 08.03~ | DB22 | MD1321 |
| 01.98~08.00 | M100 | 96284392 | MD1321 | 96316636 | ||
| 07.00~12.05 | M150 | 96284392 | MD1321 | 96316636 | ||
| 01.05~09.13 | M04 | 96284392 | MD1321 | 96316636 | ||
| 01.03~05.05 | M150 | 96284392 | MD1321 | 96316636 | ||
| 05.05~01.10 | HB VTN | 9628439296471274 | MD1321 | 96316636 | ||
| 01.98~08.00 | M100 | 96284392 | MD1321 | 96316636 | ||
| 07.00~02.16 | M150 (UZ) | 96284392 | MD1321 | 96316636 | ||
| 07.00~12.05 | M11 M100 / M150 | 96284392 | MD1321 | 96316636 | ||
| 08.07~01.11 | M200 | 96284392 | MD1321 | 96316636 | ||
| 01.03~05.05 | M150 | 96284392 | MD1321 | 96316636 | ||
| 01.05~09.13 | M150 | 96284392 | MD1321 | 96316636 | ||
| 09.04~02.16 | M150 (UZ) | 96284392 | MD1321 | 96316636 | ||
| 12.01~06.05 | M150 | MD1321 | 96316636 |
| 01.10~01.17 | HB LITE | 9628439296471274 | MD1321 | 96316636 | ||
| 05.07~01.19 | KA48 SG RHD | 9628439296471274 | MD1321 | 96316636 | ||
| 01.05~01.10 | M04 GEN LHD | 96284392 | MD1321 | 96316636 | ||
| 01.08~01.15 | M04 GEN RHD | 96284392 | MD1321 | 96316636 | ||
| 01.08~01.15 | MD6 GEN LHD | 96284392 | MD1321 | 96316636 | ||
| 01.05~05.07 | KA48 SG RHD | 96284392 | MD1321 | 96316636 | ||
| 01.05~01.08 | MD6 GEN LHD | 96284392 | MD1321 | 96316636 | ||
| 01.05~01.10 | KF48 RHD | 9647127496284392 | MD1321 | 96316636 | ||
| 01.08~01.15 | MJ61 GL | 96284392 | MD1321 | 96316636 | ||
| 01.08~01.15 | M250 | 96284392 | MD1321 | 96316636 |
