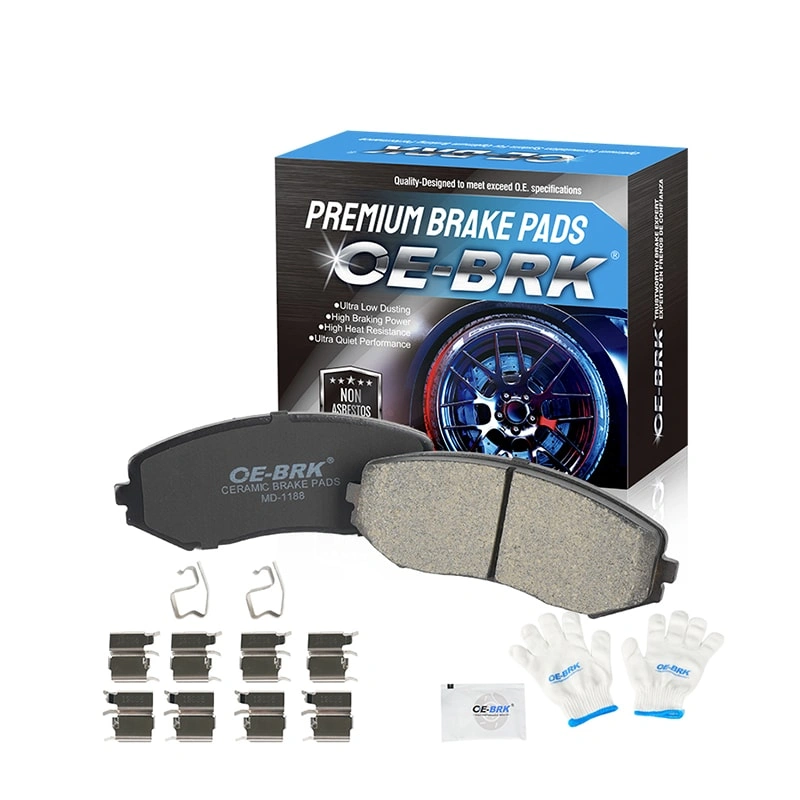

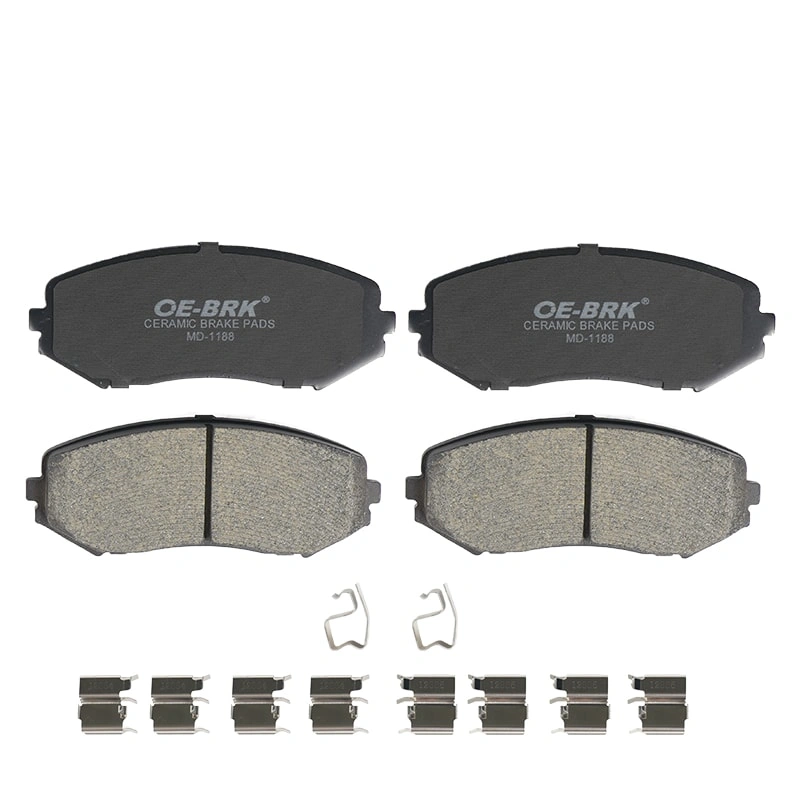

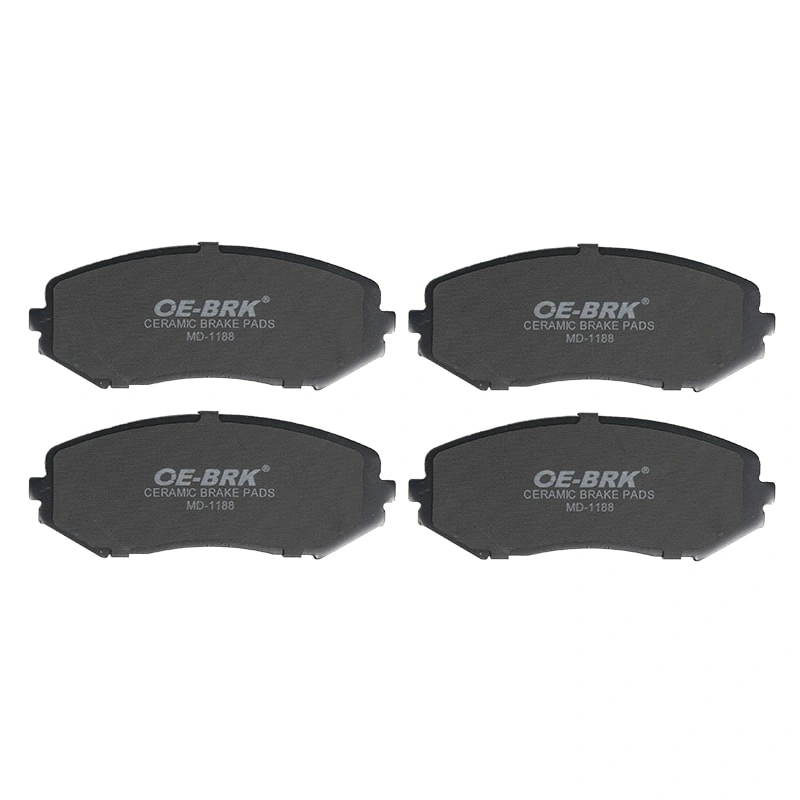

Name: MD1188
Brand: OE-BRK
SKU: PROD-139
Availability: InStock

MD1188

Front Brake

SPECIFICATION

- Location

  Front Brake
- Width

  138 mm
- Height

  54.7 mm
- Thickness

  16 mm

CROSS REFERENCE

- AKEBONO

  AN-723K
- BENDIX AUS

  DB 1842
- FERODO

  FDB4060
- FMSI

  D1188-8307
- HI-Q

  SP1416
- HITACHI

  HF708
- HITACHI

  NDP433
- KASHIYAMA

  D-9044-01
- KASHIYAMA

  D9044
- KASHIYAMA

  D904402
- SUZUKI

  52200-65J00
- SUZUKI

  55200-65J00
- SUZUKI

  55200-65J01
- SUZUKI

  55200-65J02
- SUZUKI

  55200-65J03
- SUZUKI

  55200-65J10
- SUZUKI

  55200-65J11
- SUZUKI

  55200-65J21
- SUZUKI

  55200-65J22
- SUZUKI

  55200-65J23
- SUZUKI

  55200-65J24
- SUZUKI

  55200-65J25
- SUZUKI

  55200-65J26
- SUZUKI

  55200-65J30
- SUZUKI

  55200-65J31
- SUZUKI

  55200-67D11
- TRW

  GDB3443
- TRW

  GDB7720
- WVA

  24346

YEARS

BODY

FRONT ROTOR

FRONT BRAKE

REAR ROTOR

REAR BRAKE

PARKING SHOE

SUZUKI - Escudo

06.06~04.07	TA74W	55211-65J00	MD1188
05.05~06.08	TD54W	55211-65J00	MD1188
06.08~04.17	TDA4W	55211-65J00	MD1188	55611-77K00	MD1288 MD1393 MD905 MD1415	S971
05.05~	TD84W		MD1188		MD1288 MD1393 MD905 MD1415
05.05~06.08	TD94W		MD1188
06.08~05.09	TDB4W		MD1188		MD1288 MD1393 MD905 MD1415

SUZUKI - Grand Vitara

04.05~08.12	JB416X-1/2	55211-65J00	MD1188	43511-65J00
08.08~08.12	JB416X-4/5	55211-65J00	MD1188	43511-65J00
08.12~07.16	JB416X-7	55211-65J00	MD1188	43511-65J00
08.08~08.12	TA44 3DR	55211-65J00	MD1188	55611-77K00	MD1288 MD1393 MD905 MD1415	S971
04.05~08.08	TD44	55211-65J00	MD1188	55611-77K00	MD1288 MD1393 MD905 MD1415	S971
08.08~07.19	GR NOMADE	55211-65J00	MD1188	55611-77K00	MD1288 MD1393 MD905 MD1415	S971
06.05~07.16	JTD54V	55211-65J00	MD1188	43511-65J00
01.05~12.15	TD54V	55211-65J00	MD1188	43511-65J00
08.08~07.12	TD54V LHD Type 5	55211-65J00	MD1188	55611-77K00	MD1288 MD1393 MD905 MD1415	S971
09.05~08.08	TE54V LHD Type 2	55211-65J00	MD1188	43511-65J00
01.06~08.08	TE54V RHD Type 2	55211-65J00	MD1188	43511-65J00
08.08~07.12	TE54V RHD Type 4,5	55211-65J00	MD1188	55611-77K00	MD1288 MD1393 MD905 MD1415	S971
07.12~07.19	TE54V RHD Type 8	55211-65J00	MD1188	55611-77K00	MD1288 MD1393 MD905 MD1415	S971
01.10~07.19	GR NOMADE	55211-65J00	MD1188	55611-77K00	MD1288 MD1393 MD905 MD1415	S971
01.06~07.16	JB424W RHD	55211-65J00	MD1188	55611-77K00	MD1288 MD1393 MD905 MD1415	S971
08.08~01.10	JB424W-4 LHD	55211-65J00	MD1188	55611-77K00	MD1288 MD1393 MD905 MD1415	S971
01.10~08.12	JB424W-5 LHD	55211-65J00	MD1188	55611-77K00	MD1288 MD1393 MD905 MD1415	S971
08.11~03.14	JB424W-7 LHD	55211-65J00	MD1188	55611-77K00	MD1288 MD1393 MD905 MD1415	S971
03.14~08.16	JB424W-8 LHD	55211-65J00	MD1188	55611-77K00	MD1288 MD1393 MD905 MD1415	S971
03.14~08.16	JB424W-8 LHD 3DR	55211-65J00	MD1188	55611-77K00	MD1288 MD1393 MD905 MD1415	S971
08.08~08.16	JB424X-5 TA04V LHD 3DR	55211-65J00	MD1188	55611-77K00	MD1288 MD1393 MD905 MD1415	S971
01.09~08.16	JB424X-6 TAA4V RHD 3DR	55211-65J00	MD1188	55611-77K00	MD1288 MD1393 MD905 MD1415	S971
06.01~09.08	JTD94V	55211-65J00	MD1188	43511-65J00
03.08~08.12	TD1D LHD	55211-65J00	MD1188	55611-77K00	MD1288 MD1393 MD905 MD1415	S971
08.08~08.12	TDB4V RHD	55211-65J00	MD1188	55611-77K00	MD1288 MD1393 MD905 MD1415	S971
